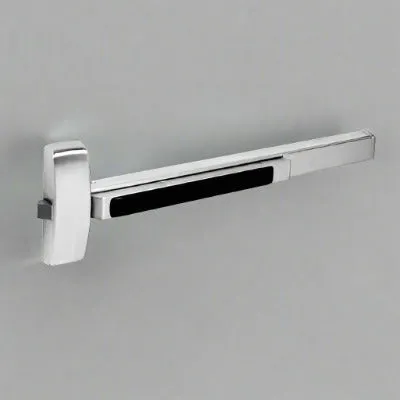

The Sargent 8888-F is a 33"-36" Reversible Rim Exit Device is a multi-function grade 1 surface mounted panic bar with hex key dogging and a wide style push pad. The 8888 is non-handed, with seven functions determined by the trim.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
Features: Sargent 8888 Rim Exit Device
- Non-handed
- Single and double door applications
- Device & trim sold separately; easy to mix and match
- 3 available trim designs; trim is field reversible
- Available in 36" and 48" widths (please specify)

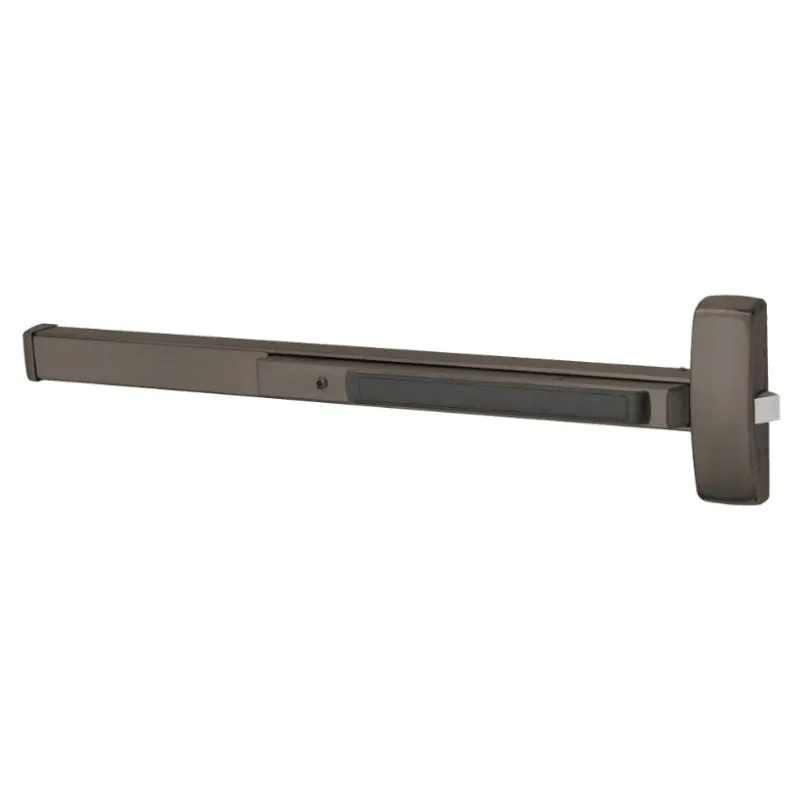

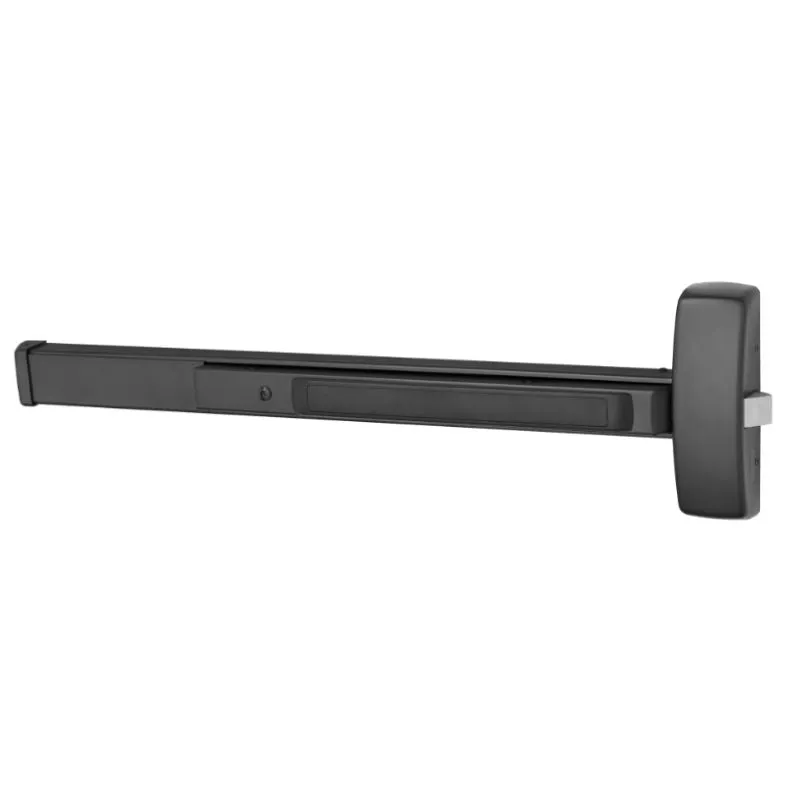

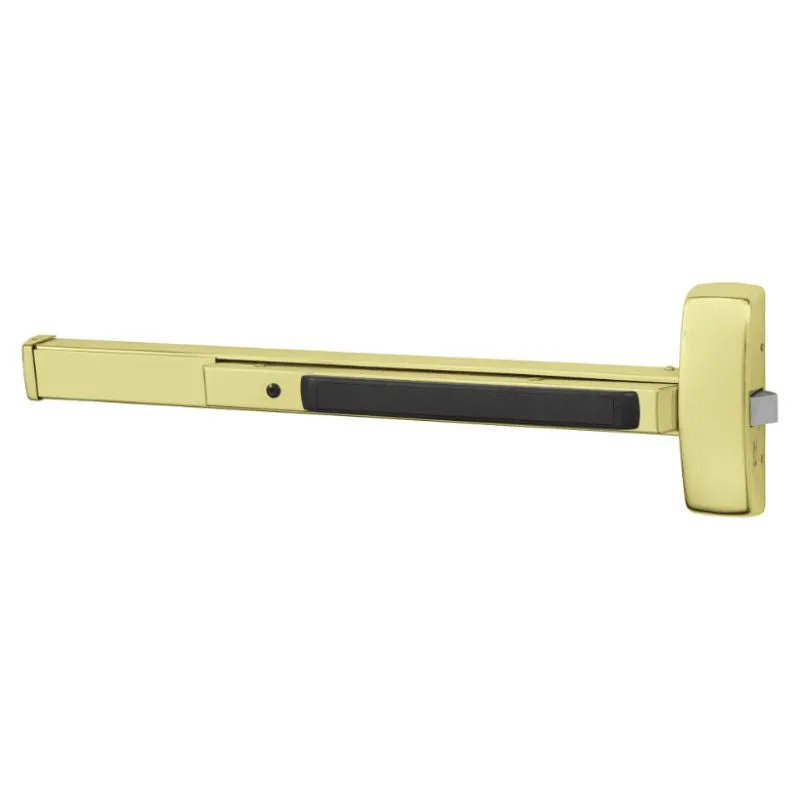

- Available in US32D/630, US10B/613, & US3/605 Finishes
Compatible Panic Trims - Sold Separately
Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only, Accepts Various Trim |
| Device Length | 36" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
